Kit Autoconsumo 3,6Kwp Pannello Solare JINKO 445Wp Monocristallino Inverter 6Kwh con regolatore + Batteria litio 4,8Kwh + cavi + quadro di campo + staffe
€3.650,00
Kit completo di tutto Autoconsumo
KIT Completo Autoconsumo con moduli JINKO 445Wp Monocristallino + Inverter con regolatore + Batteria litio
CHIEDERE SEMPRE DISPONIBILITà
Jinko Tiger Neo N serie JKMXXXN-54HL4R-V modulo fotovoltaico N-type monocristallino.
- Efficienza massima 22.27%
- 108 celle
- Tecnologia Super multi-Busbar;
- Taglie disponibili: 440 / 445 Wp
Jinko Tiger Neo N 440 / 445 Wp è un modulo fotovoltaico N-type monocristallino con 108 celle.
Il prodotto utilizza la tecnologia Super multi-Bubsar che permette di catturare meglio la luce e la raccolta di corrente.
Resistenza a neve e vento
Jinko Tiger Neo N è resistente a neve fino 6000 Pa ed a vento fino a 4000 Pa.
Garanzia
La garanzia copre il prodotto per 15 anni e le prestazioni per 30 anni, con un calo dello 0,40% nel primo anno garantendo l’87,4% dopo 30 anni

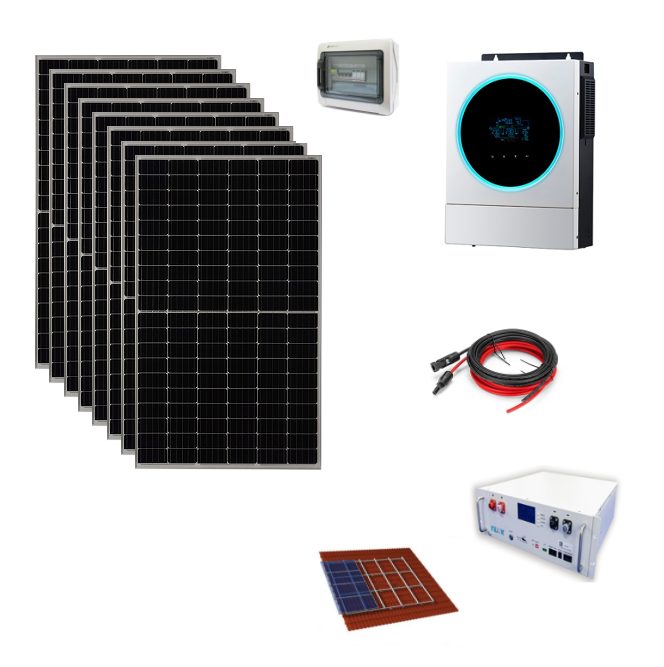

08 MODULI MONOCRISTALLINI JINKO 445Wp TOP DI GAMMA Tiger Neo N-type 54HL4R-(V) 445 Watt
01 INVERTER 6000W ONDA PURA CON REGOLATORE DA 6KWp 48V 120-500vdc (massimo 6000Wp di ingresso fotovoltaico)
01 BATTERIA LITIO 4,88KWH 100Ah RACK TOP DI GAMMA
50MT CAVO ROSSO 6MM SOLARE
50MT CAVO NERO 6MM SOLARE
02 RACCORDI MC4 PER DISCESA TETTO
01 QUADRO DI CAMPO DC COMPLETO DI SCARICATORI
01 STAFFE MONTAGGIO TETTO INCLINATO COMPLETO (4+4)
Battery Pack Parameters
|
No.
|
Items
|
General Parameter
|
Remark
|
|
|
1
|
Combination method
|
15S
|
||
|
2
|
Nominal Voltage
|
48V
|
||
|
3
|
Rated Capacity
|
Typical
|
100Ah
|
|
|
Minimum
|
100Ah
|
|||
|
4
|
Energy
|
4800Wh
|
||
|
5
|
Factory Voltage
|
48~51V
|
Mean Operation Voltage
|
|
|
6
|
Voltage at end of Discharge
|
37.5~42V
|
Discharge Cut-off Voltage
|
|
|
7
|
Voltage at end of Charge
|
52.5~55.5V
|
Charge Cut-off Voltage
|
|
|
8
|
Standard charge
|
Constant Current 20A Constant Voltage see No.7
0.02CA cut-off
|
Charge time : Approx 5~6 h
|
|
|
9
|
Limiting current
|
20A
|
BMS Limited (Charge current is
≥100A to open the current Limit)
|
|
|
10
|
Standard discharge
|
Constant current：20A end voltage see NO.6
|
||
|
11
|
Maximum Continuous Charge Current
|
100A
|
50ºC≥T≥5ºC
|
|
|
12
|
Maximum Continuous Discharge Current
|
100A
|
55ºC≥T≥0ºC
|
|
|
13
|
Operation Temperature Range
|
Charge:0~55℃
|
60±25%R.H.
No matter what mode the battery is in, once the temperature is found to exceed the absolute temperature range, stop charging or discharging immediately
|
|
|
Discharge:–20~60℃
|
||||
|
14
|
Storage Temperature Range
|
Less than 6 months: -10~35℃
|
60±25%R.H.
at the shipment state
|
|
|
Less than 3 months: -10~45℃
|
||||
|
Less than 1 months: -20~55℃
|
||||
|
15
|
Dimensions(W*D*H)
|
442*480*178mm
|
Include case
|
|
|
16
|
Net Weight
|
46Kg
|
Include case
|
|
|
17
|
Internal Impedance
|
≤45mΩ
|
Internal resistance measured at AC 1KHZ after 50% charge.
The measure must uses the new batteries that within one week after shipment and cycles less than 5
times.
|
|
Battery Management System
|
Function
|
||
|
Alarm
|
Cell over-charge voltage
|
Cell charge low temperature
|
|
Cell over-discharge voltage
|
Cell charge over temperature
|
|
|
Pack over-charge voltage
|
Cell discharge low temperature
|
|
|
Pack over-discharge voltage
|
Cell discharge over temperature
|
|
|
Over-current charge
|
Environment low temperature
|
|
|
Over-current discharge
|
Environment over temperature
|
|
|
Mos over temperature
|
||
|
Protection
|
Cell over-charge voltage
|
Cell charge over temperature
|
|
Cell over-discharge voltage
|
Cell discharge low temperature
|
|
|
Pack over-charge voltage
|
Cell discharge over temperature
|
|
|
Pack over-discharge voltage
|
Environment low temperature
|
|
|
Over-current charge
|
Environment over temperature
|
|
|
Over-current discharge
|
Short circuit
|
|
|
Mos over temperature
|
Fault
|
|
|
Cell charge low temperature
|
||
|
Others
|
Cell balance function
|
|
|
Communicate function
|
||
|
Total capacity function
|
||
|
Storage history function
|
||
|
Current limiting function
|
||
|
Dry contact function
|
||
|
No.
|
Items
|
Description
|
|
1
|
+ Power terminal
|
Power cable terminals: one connect to equipment, the other
one paralleling to other battery module for capacity expanding
|
|
2
|
– Power terminal
|
|
|
3
|
LCD Screen
|
Display the battery’s data
|
|
4
|
Power Switch
|
To turn ON/OFF while battery
|
|
5
|
Working indicator light
|
Display state information
|
|
6
|
ALM alarm indicator light
|
Red-trouble-light on
|
|
7
|
Capacity volume indicator
|
Display the battery’s capacity
|
|
8
|
Reset Key
|
Sleep /Activation /Reset
|
|
9
|
ADS Dialer
|
4 ADD switches, to definite different address code for each battery module when multiple modules are cascaded, up to 15
addresses.
|
|
10
|
Dry Contact Terminal
|
1/2 Normally open, closed during fault protection;
3/4 Normally open, closed when a low battery alarm
|
|
11
|
RS485
|
RJ45 Port,used to connect to the inverter’s RS485 port
|
|
12
|
CAN
|
RJ45 Port,used to connect to the inverter’s CAN port
|
|
13
|
RS232
|
RJ11 Port,used battery condition monitoring or manufacturer to
debug or service
|
|
14/15
|
RS485
|
RJ45 Port,used communication in parallel
|
|
16
|
Grounding Point
|
Safety |
ATTENZIONE: Su tutti i prodotti di solare fotovoltaico con iva al 10% per poter beneficare della stessa dovrete compilare dichiarazione iva, nella quale dichiarate di essere i proprietari dell’impianto in forma di privato o installatore, (non hanno diritto all’ iva del 10% i soli rivenditori) senza questa dichiarazione compilata non potremo evadere l’ordine
